Python實現pdf電子發票信息提取到excel表格
應用場景
電子發票信息提取系統主要應用于以下場景:
企業財務部門:需要處理大量電子發票,提取關鍵信息(如發票代碼、號碼、金額等)并錄入財務系統。
會計事務所:在進行審計或賬務處理時,需要從大量發票中提取信息進行分析。
報銷管理:?jiǎn)T工提交電子發票進行報銷時,系統自動提取信息,減少人工錄入錯誤。
檔案管理:對電子發票進行分類、歸檔和檢索時,提取的信息可以作為索引。
數據分析:從大量發票中提取數據,進行企業支出分析、稅 務籌劃等。

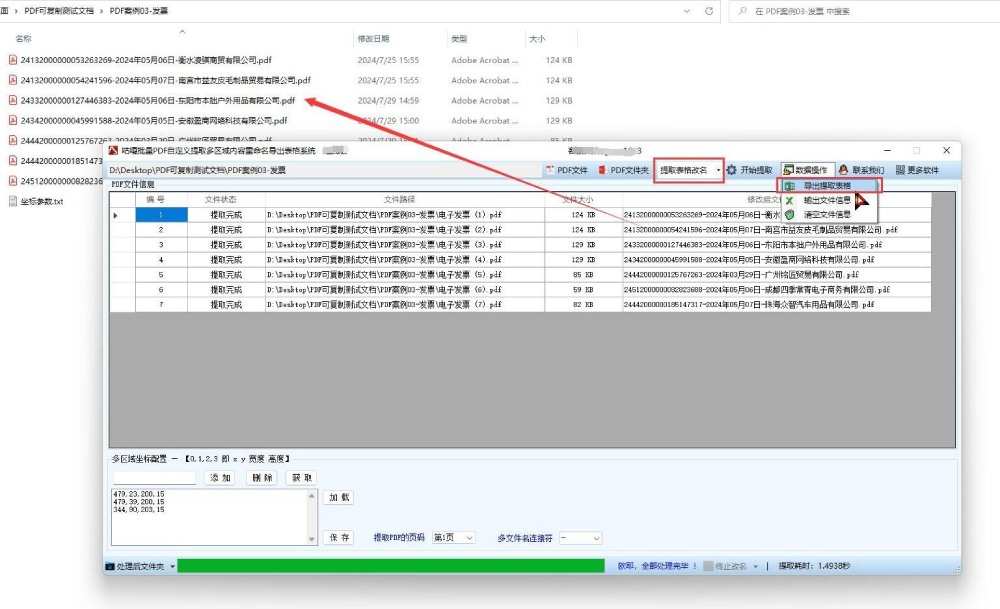

界面設計
系統采用圖形化界面設計,主要包含以下幾個部分:
文件選擇區域:提供 "選擇文件" 和 "選擇文件夾" 按鈕,方便用戶批量選擇電子發票文件。
文件列表區域:顯示已選擇的文件列表,支持多選操作。
處理選項區域:用戶可以指定輸出 Excel 文件的路徑和名稱。
進度顯示區域:包含進度條和狀態文本,實時顯示處理進度。
操作按鈕區域:提供 "開始處理"、"清空列表" 和 "退出" 等功能按鈕。
界面設計簡潔明了,符合用戶操作習慣,同時提供了必要的提示和反饋信息。
詳細代碼步驟
import os import re import fitz # PyMuPDF import pandas as pd from pdf2image import convert_from_path import pytesseract from PIL import Image import xml.etree.ElementTree as ET import tkinter as tk from tkinter import filedialog, messagebox, ttk import threading import logging from datetime import datetime # 配置日志 logging.basicConfig( level=logging.INFO, format='%(asctime)s - %(name)s - %(levelname)s - %(message)s', filename='invoice_extractor.log' ) logger = logging.getLogger(__name__) class InvoiceExtractor: def __init__(self): # 初始化配置 self.config = { 'pdf': { 'invoice_code_pattern': r'發票代碼:(\d+)', 'invoice_number_pattern': r'發票號碼:(\d+)', 'date_pattern': r'日期:(\d{4}年\d{1,2}月\d{1,2}日)', 'amount_pattern': r'金額:¥(\d+\.\d{2})', 'tax_pattern': r'稅額:¥(\d+\.\d{2})', 'total_pattern': r'價稅合計:¥(\d+\.\d{2})' }, 'ofd': { 'invoice_code_xpath': './/TextObject[starts-with(text(), "發票代碼")]/following-sibling::TextObject[1]', 'invoice_number_xpath': './/TextObject[starts-with(text(), "發票號碼")]/following-sibling::TextObject[1]', 'date_xpath': './/TextObject[starts-with(text(), "日期")]/following-sibling::TextObject[1]', 'amount_xpath': './/TextObject[starts-with(text(), "金額")]/following-sibling::TextObject[1]', 'tax_xpath': './/TextObject[starts-with(text(), "稅額")]/following-sibling::TextObject[1]', 'total_xpath': './/TextObject[starts-with(text(), "價稅合計")]/following-sibling::TextObject[1]' } } def extract_pdf_info(self, pdf_path): """提取PDF電子發票信息""" try: info = { '文件路徑': pdf_path, '發票代碼': '', '發票號碼': '', '日期': '', '金額': '', '稅額': '', '價稅合計': '' } with fitz.open(pdf_path) as doc: text = "" for page in doc: text += page.get_text() # 使用正則表達式提取信息 for key, pattern in self.config['pdf'].items(): match = re.search(pattern, text) if match: info[key.replace('_pattern', '')] = match.group(1) # 如果無法通過文本提取,則使用OCR if not all(info.values()): images = convert_from_path(pdf_path) ocr_text = "" for image in images: ocr_text += pytesseract.image_to_string(image, lang='chi_sim') for key, pattern in self.config['pdf'].items(): if not info[key.replace('_pattern', '')]: match = re.search(pattern, ocr_text) if match: info[key.replace('_pattern', '')] = match.group(1) return info except Exception as e: logger.error(f"提取PDF {pdf_path} 信息失敗: {str(e)}") return None def extract_ofd_info(self, ofd_path): """提取OFD電子發票信息""" try: info = { '文件路徑': ofd_path, '發票代碼': '', '發票號碼': '', '日期': '', '金額': '', '稅額': '', '價稅合計': '' } # OFD文件實際上是一個ZIP壓縮包 # 這里簡化處理,假設我們已經將OFD解壓并獲取到了XML文件 # 實際應用中需要處理OFD文件的解壓縮和解析 # 以下代碼僅為示例 # 假設我們已經獲取到了OFD的XML內容 # tree = ET.parse(ofd_xml_path) # root = tree.getroot() # for key, xpath in self.config['ofd'].items(): # element = root.find(xpath) # if element is not None: # info[key.replace('_xpath', '')] = element.text # 由于OFD格式的復雜性,這里使用OCR作為替代方案 images = convert_from_path(ofd_path) ocr_text = "" for image in images: ocr_text += pytesseract.image_to_string(image, lang='chi_sim') for key, pattern in self.config['pdf'].items(): if key in info: match = re.search(pattern, ocr_text) if match: info[key.replace('_pattern', '')] = match.group(1) return info except Exception as e: logger.error(f"提取OFD {ofd_path} 信息失敗: {str(e)}") return None def batch_process_files(self, files, output_path): """批量處理文件并導出到Excel""" results = [] total = len(files) processed = 0 for file_path in files: try: file_ext = os.path.splitext(file_path)[1].lower() if file_ext == '.pdf': info = self.extract_pdf_info(file_path) elif file_ext == '.ofd': info = self.extract_ofd_info(file_path) else: logger.warning(f"不支持的文件類型: {file_path}") continue if info: results.append(info) except Exception as e: logger.error(f"處理文件 {file_path} 時出錯: {str(e)}") processed += 1 yield processed, total # 導出到Excel if results: df = pd.DataFrame(results) df.to_excel(output_path, index=False) logger.info(f"成功導出 {len(results)} 條記錄到 {output_path}") return True else: logger.warning("沒有可導出的數據") return False class InvoiceExtractorGUI: def __init__(self, root): self.root = root self.root.title("電子發票信息提取系統") self.root.geometry("800x600") self.extractor = InvoiceExtractor() self.selected_files = [] self.is_processing = False self.create_widgets() def create_widgets(self): """創建GUI界面""" # 創建主框架 main_frame = ttk.Frame(self.root, padding="10") main_frame.pack(fill=tk.BOTH, expand=True) # 文件選擇區域 file_frame = ttk.LabelFrame(main_frame, text="文件選擇", padding="10") file_frame.pack(fill=tk.X, pady=5) ttk.Button(file_frame, text="選擇文件", command=self.select_files).pack(side=tk.LEFT, padx=5) ttk.Button(file_frame, text="選擇文件夾", command=self.select_folder).pack(side=tk.LEFT, padx=5) self.file_count_var = tk.StringVar(value="已選擇 0 個文件") ttk.Label(file_frame, textvariable=self.file_count_var).pack(side=tk.RIGHT, padx=5) # 文件列表區域 list_frame = ttk.LabelFrame(main_frame, text="文件列表", padding="10") list_frame.pack(fill=tk.BOTH, expand=True, pady=5) # 創建滾動條 scrollbar = ttk.Scrollbar(list_frame) scrollbar.pack(side=tk.RIGHT, fill=tk.Y) # 創建文件列表 self.file_listbox = tk.Listbox(list_frame, yscrollcommand=scrollbar.set, selectmode=tk.EXTENDED) self.file_listbox.pack(fill=tk.BOTH, expand=True) scrollbar.config(command=self.file_listbox.yview) # 處理選項區域 options_frame = ttk.LabelFrame(main_frame, text="處理選項", padding="10") options_frame.pack(fill=tk.X, pady=5) ttk.Label(options_frame, text="輸出文件:").pack(side=tk.LEFT, padx=5) default_output = os.path.join(os.getcwd(), f"發票信息_{datetime.now().strftime('%Y%m%d_%H%M%S')}.xlsx") self.output_path_var = tk.StringVar(value=default_output) output_entry = ttk.Entry(options_frame, textvariable=self.output_path_var, width=50) output_entry.pack(side=tk.LEFT, padx=5) ttk.Button(options_frame, text="瀏覽", command=self.browse_output).pack(side=tk.LEFT, padx=5) # 進度條區域 progress_frame = ttk.Frame(main_frame, padding="10") progress_frame.pack(fill=tk.X, pady=5) self.progress_var = tk.DoubleVar(value=0) self.progress_bar = ttk.Progressbar(progress_frame, variable=self.progress_var, maximum=100) self.progress_bar.pack(fill=tk.X) self.status_var = tk.StringVar(value="就緒") ttk.Label(progress_frame, textvariable=self.status_var).pack(anchor=tk.W) # 按鈕區域 button_frame = ttk.Frame(main_frame, padding="10") button_frame.pack(fill=tk.X, pady=5) self.process_button = ttk.Button(button_frame, text="開始處理", command=self.start_processing) self.process_button.pack(side=tk.LEFT, padx=5) ttk.Button(button_frame, text="清空列表", command=self.clear_file_list).pack(side=tk.LEFT, padx=5) ttk.Button(button_frame, text="退出", command=self.root.quit).pack(side=tk.RIGHT, padx=5) def select_files(self): """選擇多個文件""" if self.is_processing: return files = filedialog.askopenfilenames( title="選擇電子發票文件", filetypes=[("PDF文件", "*.pdf"), ("OFD文件", "*.ofd"), ("所有文件", "*.*")] ) if files: self.selected_files = list(files) self.update_file_list() def select_folder(self): """選擇文件夾""" if self.is_processing: return folder = filedialog.askdirectory(title="選擇包含電子發票的文件夾") if folder: pdf_files = [os.path.join(folder, f) for f in os.listdir(folder) if f.lower().endswith('.pdf')] ofd_files = [os.path.join(folder, f) for f in os.listdir(folder) if f.lower().endswith('.ofd')] self.selected_files = pdf_files + ofd_files self.update_file_list() def update_file_list(self): """更新文件列表顯示""" self.file_listbox.delete(0, tk.END) for file_path in self.selected_files: self.file_listbox.insert(tk.END, os.path.basename(file_path)) self.file_count_var.set(f"已選擇 {len(self.selected_files)} 個文件") def browse_output(self): """瀏覽輸出文件位置""" if self.is_processing: return output_file = filedialog.asksaveasfilename( title="保存輸出文件", defaultextension=".xlsx", filetypes=[("Excel文件", "*.xlsx"), ("所有文件", "*.*")] ) if output_file: self.output_path_var.set(output_file) def clear_file_list(self): """清空文件列表""" if self.is_processing: return self.selected_files = [] self.update_file_list() def start_processing(self): """開始處理文件""" if self.is_processing or not self.selected_files: return output_path = self.output_path_var.get() if not output_path: messagebox.showerror("錯誤", "請指定輸出文件") return # 確認是否覆蓋現有文件 if os.path.exists(output_path): if not messagebox.askyesno("確認", "輸出文件已存在,是否覆蓋?"): return self.is_processing = True self.process_button.config(state=tk.DISABLED) self.status_var.set("正在處理...") # 在單獨的線程中處理文件 threading.Thread(target=self.process_files_thread, daemon=True).start() def process_files_thread(self): """文件處理線程""" try: output_path = self.output_path_var.get() progress = 0 total = len(self.selected_files) for processed, total in self.extractor.batch_process_files(self.selected_files, output_path): progress = (processed / total) * 100 self.progress_var.set(progress) self.status_var.set(f"正在處理 {processed}/{total}") self.root.update_idletasks() self.progress_var.set(100) self.status_var.set("處理完成") messagebox.showinfo("成功", f"已成功處理 {total} 個文件\n結果已保存至: {output_path}") except Exception as e: logger.error(f"處理過程中出錯: {str(e)}") self.status_var.set("處理出錯") messagebox.showerror("錯誤", f"處理過程中出錯: {str(e)}") finally: self.is_processing = False self.process_button.config(state=tk.NORMAL) def main(): """主函數""" try: # 檢查依賴庫 import PyMuPDF import pandas import pdf2image import pytesseract from PIL import Image # 創建GUI root = tk.Tk() app = InvoiceExtractorGUI(root) root.mainloop() except ImportError as e: print(f"缺少必要的庫: {str(e)}") print("請安裝所有依賴庫: pip install PyMuPDF pandas pdf2image pytesseract pillow") except Exception as e: print(f"程序啟動出錯: {str(e)}") logger.error(f"程序啟動出錯: {str(e)}") if __name__ == "__main__": main()
系統實現主要包含以下幾個核心模塊:
配置管理:設置 PDF 和 OFD 文件的信息提取規則,包括正則表達式模式和 OFD 的 XPath 表達式。
PDF 信息提?。菏褂?PyMuPDF 庫讀取 PDF 文本內容,通過正則表達式提取關鍵信息;如果文本提取失敗,則使用 OCR 技術進行圖像識別。
OFD 信息提取:OFD 文件結構復雜,本系統采用 OCR 技術作為主要提取方法,將 OFD 轉換為圖像后使用 pytesseract 進行文字識別。
批量處理:支持批量處理多個文件,并提供進度反饋。

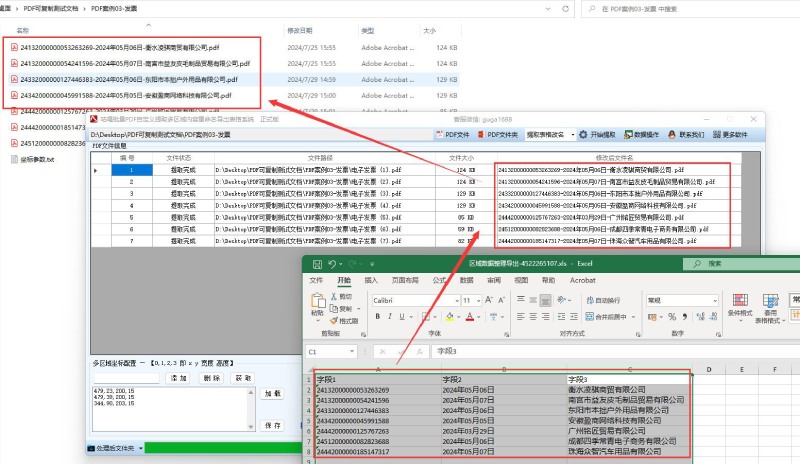

數據導出:將提取的信息整理成 DataFrame,并導出為 Excel 文件。
圖形界面:使用 tkinter 構建直觀易用的圖形界面,支持文件選擇、處理選項設置和進度顯示。
總結優化
該系統提供了一個基礎的電子發票信息提取解決方案,具有以下優點:
- 通用性:支持 PDF 和 OFD 兩種主流電子發票格式。
- 可擴展性:配置文件分離,易于添加新的發票格式或修改提取規則。
- 用戶友好:圖形界面操作簡單,適合非技術人員使用。
- 日志記錄:完整的日志記錄,便于問題排查和系統優化。
然而,系統仍有以下可以優化的地方:
- OFD 解析:當前使用 OCR 處理 OFD 文件效率較低,可以研究更高效的 OFD 解析庫。
- 提取規則優化:針對不同類型的發票,可能需要定制化的提取規則,可考慮添加規則配置界面。
- 性能優化:對于大量文件的處理,可以引入多線程或異步處理提高效率。
- 數據驗證:增加提取信息的驗證機制,提高數據準確性。
- 用戶體驗:添加更多交互反饋,如文件預覽、處理結果預覽等功能。
通過不斷優化和擴展,該系統可以滿足更多場景的需求,提高電子發票信息處理的效率和準確性。
到此這篇關于Python實現pdf電子發票信息提取到excel表格的文章就介紹到這了,更多相關Python提取pdf信息保存到excel內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
