import holoviews as hv
from holoviews import opts
import pandas as pd
import numpy as np
hv.extension('bokeh')

# 代表5個國家之間出口量的示例矩陣
export_data = np.array([[0, 50, 30, 20, 10],
                        [10, 0, 40, 30, 20],
                        [20, 10, 0, 35, 25],
                        [30, 20, 10, 0, 40],
                        [25, 15, 30, 20, 0]])

labels = ['美國', '中國', '德國', '日本', '印度']

# 創建一個pandas DataFrame
df = pd.DataFrame(export_data, index=labels, columns=labels)
df = df.stack().reset_index()
df.columns = ['來源', '目標', '數值']

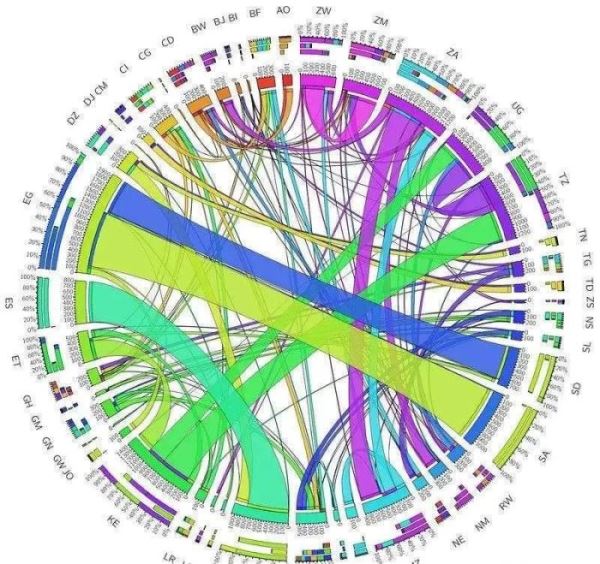

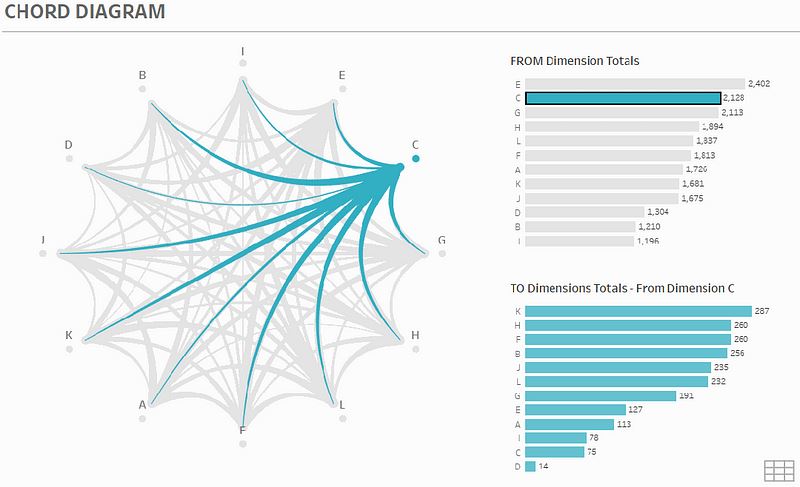

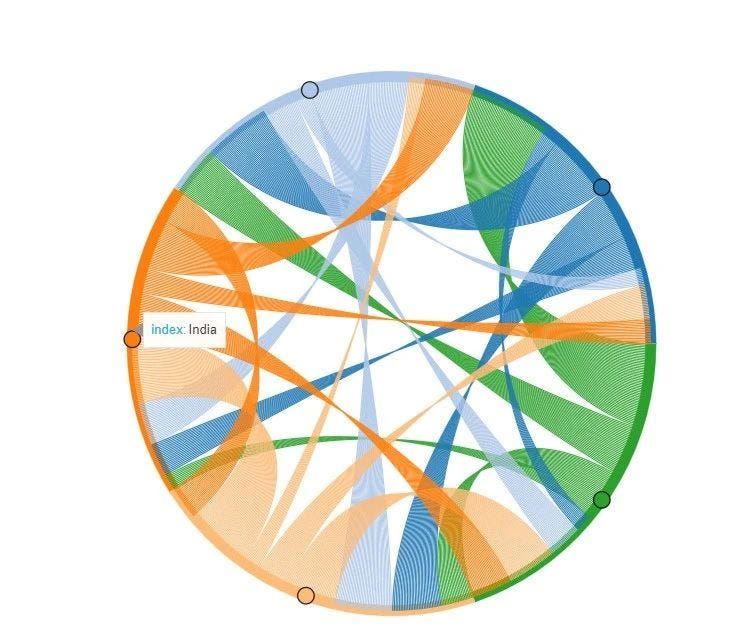

# 創建一個Chord對象
chord = hv.Chord(df)

# 對和弦圖進行樣式設置
chord.opts(
    opts.Chord(
        cmap='Category20', edge_cmap='Category20',
        labels='source', label_text_font_size='10pt',
        edge_color='source', node_color='index',
        width=700, height=700
    )
).select(value=(5, None))

# 顯示圖表
chord

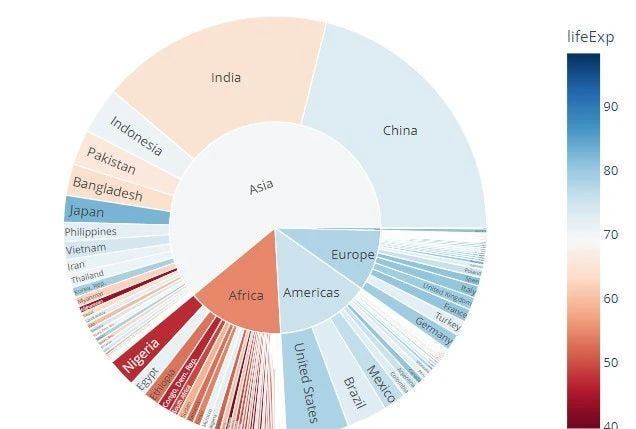

import plotly.express as px
import numpy as np

df = px.data.gapminder().query("year == 2007")

fig = px.sunburst(df, path=['continent', 'country'],
                  values='pop',
                  color='lifeExp',
                  hover_data=['iso_alpha'],
                  color_continuous_scale='RdBu',
                  color_continuous_midpoint=np.average(df['lifeExp'], weights=df['pop']))
fig.show()

import numpy as np
import matplotlib.pyplot as plt
from mplhexbin import HexBin

# 模擬數據
np.random.seed(0)  # 確保結果可復現
n_points = 10000
x = np.random.rand(n_points) * 100# 空氣質量指數（AQI）取值范圍為0到100
y = 5 * np.sin(x * np.pi / 50) + np.random.randn(n_points) * 15# 模擬的醫院就診人數，與AQI相關但存在噪聲

# 創建一個新的圖形
fig, ax = plt.subplots(figsize=(10, 8))

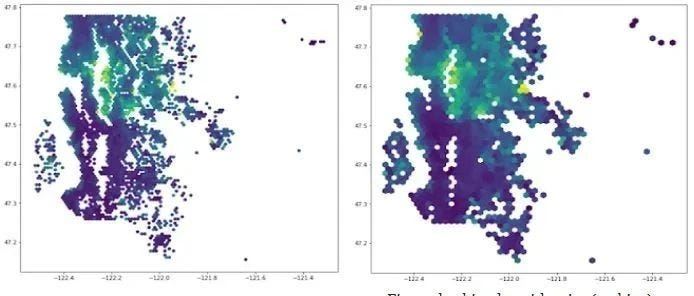

# 使用HexBin創建六邊形分箱圖
hb = HexBin(ax, gridsize=20, cmap='viridis', extent=[0, 100, -30, 50])  # 設置網格大小、顏色映射和范圍
hb.hexbin(x, y, mincnt=1)  # 繪制六邊形分箱圖，mincnt設置最小計數閾值

# 添加標題和軸標簽
ax.set_title('空氣質量指數（AQI）與醫院就診人數之間的關系')
ax.set_xlabel('空氣質量指數（AQI）')
ax.set_ylabel('醫院就診人數')

# 顯示圖形
plt.colorbar(hb.cmap, ax=ax, label='數據點數量')  # 添加顏色條并設置標簽
plt.show()

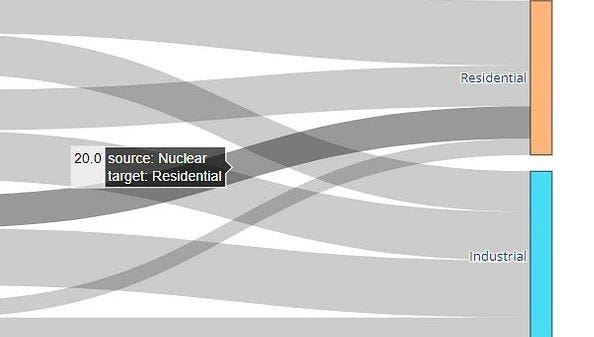

import plotly.graph_objects as go

labels = ["煤炭", "太陽能", "風能", "核能", "居民", "工業", "商業"]

source = [0, 1, 2, 3, 0, 1, 2, 3]
target = [4, 4, 4, 4, 5, 5, 5, 5]
value = [25, 10, 40, 20, 30, 15, 25, 35]

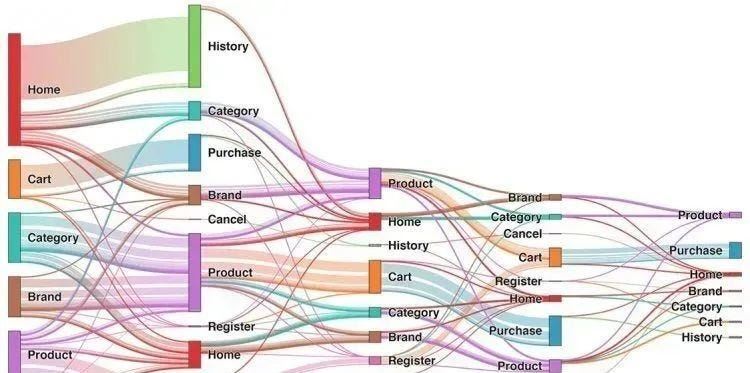

# 創建桑基圖對象
fig = go.Figure(data=[go.Sankey(
    node=dict(
        pad=15,
        thickness=20,
        line=dict(color="black", width=0.5),
        label=labels
    ),
    link=dict(
        source=source,
        target=target,
        value=value
    ))])

fig.update_layout(title_text="模范城市的能源流動", font_size=12)
fig.show()

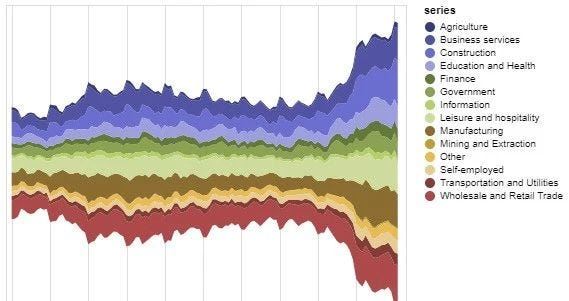

import altair as alt
from vega_datasets import data

source = data.unemployment_across_industries.url

alt.Chart(source).mark_area().encode(
    alt.X('yearmonth(date):T',
        axis=alt.Axis(format='%Y', domain=False, tickSize=0)
    ),
    alt.Y('sum(count):Q', stack='center', axis=None),
    alt.Color('series:N',
        scale=alt.Scale(scheme='category20b')
    )
).interactive()
