python實現簡易SSL的項目實踐
本篇博客使用python實現了一個簡易的SSL,以幫助理解SSL的大致實現流程。
SSL(Secure Socket Layer)安全套接層是Netscape公司率先采用的網絡安全協議。它是在傳輸通信協議(TCP/IP)上實現的一種安全協議,采用公開密鑰技術。
運行環境
- 操作系統:浪潮云啟操作系統 InLinux 23.12 LTS SP1
- python版本:3.9.9
- 使用的python包:cryptography、ownca、signify
浪潮云啟操作系統(InLinux)面向企業級業務,提供自主可控、安全可靠的新一代服務器操作系統,全面支持云計算、大數據、人工智能、物聯網等新型場景,具備性能高效、擴展便捷、管理智能、內生安全等特性。
運行前準備
# 安裝python yum install -y python # 安裝python包 pip install cryptography ownca signify
程序?qū)崿F(xiàn)與流程說明
本程序?qū)崿F(xiàn)了一個簡易的SSL,共分為三個模塊:CA.py,server.py,client.py。
CA.py負責簽發證書,server.py與client.py通信,過程中會實現生成公私鑰對、會話密鑰等過程。為了簡易性,server能夠從本地直接獲取證書,且只有server對client檢查證書。
程序流程如下:
- CA生成根證書、公私鑰對
- client生成公私鑰對、向CA發送CSR請求
- CA收到CSR請求,用私鑰簽名,向client發送簽名證書,client拿到證書
- client第一次向server發送數據,并附帶證書信息
- server檢驗證書信息,并生成session_key,利用client公鑰加密session_key,將密文發回給client,之后的對話用session_key驗證。
- client解密session_key,利用消息和session_key生成MAC,向server發送消息并附帶MAC
- server收到消息并驗證MAC,對話結束。
運行截圖
CA.py

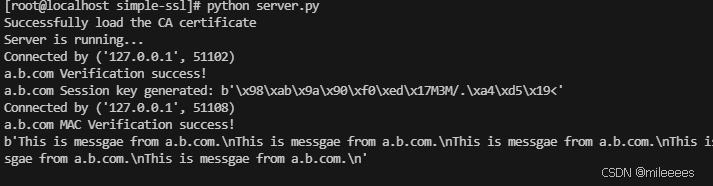

server.py

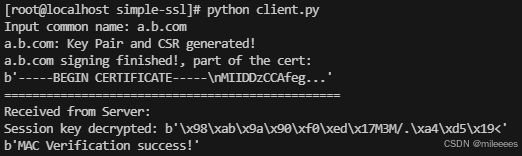

client.py

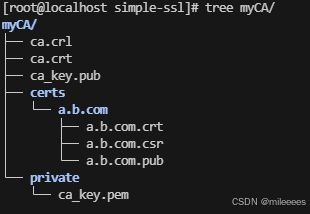

證書目錄:

代碼
CA.py
import ownca.ownca
import socket
from cryptography import x509
from cryptography.x509 import NameOID
ca = ownca.CertificateAuthority(ca_storage='./myCA',common_name='myCA')
print("myCA initialized")
HOST = "127.0.0.1" # Standard loopback interface address (localhost)
PORT = 11111 # Port to listen on (non-privileged ports are > 1023)
server_socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
server_socket.bind((HOST, PORT))
server_socket.listen(5)
print("myCA server is running...")
while True:
conn, addr = server_socket.accept()
print(f"Connected by {addr}")
data = conn.recv(2048)
csr = x509.load_pem_x509_csr(data)
try:
# sign the CSR, if success, the certificate will generate and store
ca.sign_csr(csr,csr.public_key(),maximum_days=825)
except Exception as e:
print(e)
# extract CN from CSR
common_name = csr.subject.get_attributes_for_oid(NameOID.COMMON_NAME)[0].value
# load the issued certificate from existing file
load_cert = ca.load_certificate(common_name)
print('Successfully sign for ' + common_name)
# Send the certificate bytes
send_data = load_cert.cert_bytes
conn.sendall(send_data)
conn.close()
client.py
import socket
import pickle
from cryptography import x509
from cryptography.x509.oid import NameOID
from cryptography.hazmat.primitives import hashes, hmac
from cryptography.hazmat.primitives import serialization
from cryptography.hazmat.primitives.asymmetric import rsa, padding
def generateCSR(common_name, private_key):
csr = x509.CertificateSigningRequestBuilder().subject_name(x509.Name([
# Provide various details about who we are.
x509.NameAttribute(NameOID.COUNTRY_NAME, u"CN"),
x509.NameAttribute(NameOID.STATE_OR_PROVINCE_NAME, u"Beijing"),
# x509.NameAttribute(NameOID.LOCALITY_NAME, u"Richmond"),
# x509.NameAttribute(NameOID.ORGANIZATION_NAME, u"My Organization"),
x509.NameAttribute(NameOID.COMMON_NAME, common_name),
])).sign(private_key, hashes.SHA256())
return csr
def RSADecryption(cipher, private_key):
msg = private_key.decrypt(
cipher,
padding.OAEP(
mgf=padding.MGF1(algorithm=hashes.SHA256()),
algorithm=hashes.SHA256(),
label=None
)
)
return msg
# Generate the RSA private key
private_key = rsa.generate_private_key(public_exponent=65537, key_size=2048)
cn = input("Input common name: ")
csr = generateCSR(cn, private_key)
public_key = private_key.public_key()
# public_key = csr.public_key()
csr_bytes = csr.public_bytes(serialization.Encoding.PEM)
print(cn + ": Key Pair and CSR generated!")
HOST = "127.0.0.1" # The server's hostname or IP address
CA_PORT = 11111 # The CA server port
with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
s.connect((HOST, CA_PORT))
s.sendall(csr_bytes) # send the generated CSR
cert_data = s.recv(2048)
print(cn + " signing finished!, part of the cert:")
print(cert_data[:40] + b'...')
print('================================================')
Server_PORT = 22222 # The Server port
session_key = b''
msg = b''
hMAC = b''
public_key_pem = public_key.public_bytes(
encoding=serialization.Encoding.PEM,
format=serialization.PublicFormat.SubjectPublicKeyInfo
)
with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
s.connect((HOST, Server_PORT))
# send all params to the Server
params = [cn, cert_data, public_key_pem, session_key, msg, hMAC]
data = pickle.dumps(params)
s.sendall(data)
data = s.recv(2048)
print("Received from Server: ")
session_key = RSADecryption(data, private_key)
print("Session key decrypted:",session_key)
msg = b'This is messgae from ' + cn.encode('utf-8') + b'.\n'
with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
s.connect((HOST, Server_PORT))
msg = msg * 10
h = hmac.HMAC(session_key,hashes.SHA256())
h.update(msg)
hMAC = h.finalize()
# Send all params with valid session_key, msg and hMAC
params = [cn, cert_data, public_key_pem, session_key, msg, hMAC]
data = pickle.dumps(params)
s.sendall(data)
data = s.recv(2048)
print(data)
server.py
import os
import pickle
import socket
import ownca
from cryptography.hazmat.primitives import hashes, hmac
from cryptography.hazmat.primitives.asymmetric import padding
from cryptography.hazmat.primitives.serialization import load_pem_public_key
from signify.x509 import CertificateStore, VerificationContext, Certificate
ca = ownca.CertificateAuthority(ca_storage='./myCA',common_name='myCA')
print("Successfully load the CA certificate")
HOST = "127.0.0.1"
PORT = 22222
server_socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
server_socket.bind((HOST, PORT))
server_socket.listen()
print("Server is running...")
# generate a list of random bytes as Session key
def generateSessionKey(byte_num=16):
return os.urandom(byte_num)
# Encrypt the msg using RSA
def RSAEncryption(msg, public_key):
cipher = public_key.encrypt(
msg,
padding.OAEP(
mgf=padding.MGF1(algorithm=hashes.SHA256()),
algorithm=hashes.SHA256(),
label=None
)
)
return cipher
while True:
conn, addr = server_socket.accept()
print(f"Connected by {addr}")
data = conn.recv(2048)
# find all params from the received data
params = pickle.loads(data)
cn = params[0]
cert_from_cli_pem = params[1]
public_key_pem = params[2] # for encrypting the session_key
session_key = params[3]
msg = params[4]
hMAC_to_check = params[5]
# if no session built
if not session_key:
try:
# Using Signify to verify the certificate
# Raise exception if verification error
trust_store = CertificateStore([Certificate.from_pem(ca.cert_bytes)], trusted=True)
context = VerificationContext(trust_store)
Certificate.from_pem(cert_from_cli_pem).verify(context)
except Exception as e:
print(cn + "Verification error: ", e)
conn.sendall(b"Verification error!\n")
conn.close()
continue
finally:
print(cn + " Verification success!")
# load cert from stu_pem and find the public_key
public_key = load_pem_public_key(public_key_pem)
session_key = generateSessionKey()
print(cn + " Session key generated:",session_key)
cipher = RSAEncryption(session_key,public_key)
conn.sendall(cipher)
# valid session key
else:
h = hmac.HMAC(session_key, hashes.SHA256())
h.update(msg)
try:
h.verify(hMAC_to_check)
except Exception as e:
print(cn + " MAC Verification wrong:",e)
conn.close()
continue
finally:
print(cn + " MAC Verification success!")
print(msg)
conn.sendall(b'MAC Verification success!')
conn.close()
參考資料
到此這篇關于python實現簡易SSL的項目實踐的文章就介紹到這了,更多相關python實現簡易SSL內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
