WPF 實現描點導航

1.框架支持.NET4 至 .NET8；

2.Visual Studio 2022;

有一位開發者需要實現類似「左側導航欄 + 右側滾動內容」的控件，需要支持?jǐn)?shù)據綁定、內容模板、同步滾動定位等功能。

1. 新增 NavScrollPanel.cs

左側導航欄ListBox：顯示導航，支持點擊定位；
右側滾動內容區 ScrollViewer 和 StackPanel：展示對應內容模板，支持滾動自動選中導航項。
通過 ItemsSource 綁定內容集合；
自定義 ItemTemplate 顯示內容；
通過 TranslatePoint 方法，可以獲取元素相對于容器的坐標位置，并確保該位置不受 Margin 的影響。通過調用 ScrollToVerticalOffset 來滾動右側容器;

public classNavScrollPanel : Control
{
    static NavScrollPanel()
    {
        DefaultStyleKeyProperty.OverrideMetadata(typeof(NavScrollPanel),
            new FrameworkPropertyMetadata(typeof(NavScrollPanel)));
    }

    public IEnumerable ItemsSource
    {
        get => (IEnumerable)GetValue(ItemsSourceProperty);
        set => SetValue(ItemsSourceProperty, value);
    }

    publicstaticreadonly DependencyProperty ItemsSourceProperty =
        DependencyProperty.Register(nameof(ItemsSource), typeof(IEnumerable), typeof(NavScrollPanel), new PropertyMetadata(null, OnItemsSourceChanged));

    public DataTemplate ItemTemplate
    {
        get => (DataTemplate)GetValue(ItemTemplateProperty);
        set => SetValue(ItemTemplateProperty, value);
    }

    publicstaticreadonly DependencyProperty ItemTemplateProperty =
        DependencyProperty.Register(nameof(ItemTemplate), typeof(DataTemplate), typeof(NavScrollPanel), new PropertyMetadata(null));

    publicint SelectedIndex
    {
        get => (int)GetValue(SelectedIndexProperty);
        set => SetValue(SelectedIndexProperty, value);
    }

    publicstaticreadonly DependencyProperty SelectedIndexProperty =
        DependencyProperty.Register(nameof(SelectedIndex), typeof(int), typeof(NavScrollPanel), new PropertyMetadata(-1, OnSelectedIndexChanged));

    private ListBox _navListBox;
    private ScrollViewer _scrollViewer;
    private StackPanel _contentPanel;

    public override void OnApplyTemplate()
    {
        base.OnApplyTemplate();

        _navListBox = GetTemplateChild("PART_ListBox") as ListBox;
        _scrollViewer = GetTemplateChild("PART_ScrollViewer") as ScrollViewer;
        _contentPanel = GetTemplateChild("PART_ContentPanel") as StackPanel;

        if (_navListBox != null)
        {
            _navListBox.DisplayMemberPath = "Title";
            _navListBox.SelectionChanged -= NavListBox_SelectionChanged;
            _navListBox.SelectionChanged += NavListBox_SelectionChanged;
        }
        if (_scrollViewer != null)
        {
            _scrollViewer.ScrollChanged += ScrollViewer_ScrollChanged;
        }
        RenderContent();
    }

    private void NavListBox_SelectionChanged(object sender, SelectionChangedEventArgs e)
    {
        SelectedIndex = _navListBox.SelectedIndex;
    }

    private void ScrollViewer_ScrollChanged(object sender, ScrollChangedEventArgs e)
    {
        double currentOffset = _scrollViewer.VerticalOffset;
        double viewportHeight = _scrollViewer.ViewportHeight;

        for (int i = 0; i < _contentPanel.Children.Count; i++)
        {
            var element = _contentPanel.Children[i] as FrameworkElement;
            if (element == null) continue;

            Point relativePoint = element.TranslatePoint(new Point(0, 0), _contentPanel);

            if (relativePoint.Y >= currentOffset && relativePoint.Y < currentOffset + viewportHeight)
            {
                _navListBox.SelectionChanged -= NavListBox_SelectionChanged;
                SelectedIndex = i;
                _navListBox.SelectionChanged += NavListBox_SelectionChanged;
                break;
            }
        }
    }


    private static void OnItemsSourceChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
    {
        if (d is NavScrollPanel control)
        {
            control.RenderContent();
        }
    }

    private static void OnSelectedIndexChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
    {
        if (d is NavScrollPanel control)
        {
            int index = (int)e.NewValue;

            if (control._contentPanel != null &&
                index >= 0 && index < control._contentPanel.Children.Count)
            {
                var target = control._contentPanel.Children[index] as FrameworkElement;
                if (target != null)
                {
                    var virtualPoint = target.TranslatePoint(new Point(0, 0), control._contentPanel);
                    control._scrollViewer.ScrollToVerticalOffset(virtualPoint.Y);
                }
            }
        }
    }

    private void RenderContent()
    {
        if (_contentPanel == null || ItemsSource == null || ItemTemplate == null)
            return;
        _contentPanel.Children.Clear();
        foreach (var item in ItemsSource)
        {
            var content = new ContentControl
            {
                Content = item,
                ContentTemplate = ItemTemplate,
                Margin = new Thickness(10,50,10,50)
            };
            _contentPanel.Children.Add(content);
        }
    }
}

2. 新增 NavScrollPanel.Xaml

控件模板通過 ListBox 和 ScrollViewer 實現。

<Style TargetType="local:NavScrollPanel">
    <Setter Property="Template">
        <Setter.Value>
            <ControlTemplate TargetType="local:NavScrollPanel">
                <Grid>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="120" />
                        <ColumnDefinition Width="*" />
                    </Grid.ColumnDefinitions>
                    <ListBox
                        x:Name="PART_ListBox"
                        ItemsSource="{TemplateBinding ItemsSource}"
                        SelectedIndex="{TemplateBinding SelectedIndex}" />
                    <ScrollViewer
                        x:Name="PART_ScrollViewer"
                        Grid.Column="1"
                        VerticalScrollBarVisibility="Auto">
                        <StackPanel x:Name="PART_ContentPanel" />
                    </ScrollViewer>
                </Grid>
            </ControlTemplate>
        </Setter.Value>
    </Setter>
</Style>

3. 使用示例

1. 定義數據結構

public class SectionItem {
    public string Title { get; set; }
    public object Content { get; set; }
}

2. 初始化數據并綁定

Sections = new ObservableCollection<SectionItem>
{
    new SectionItem{ Title = "播放相關", Content = new PlaybackSettings()},
    new SectionItem{ Title = "桌面歌詞", Content = new DesktopLyrics()},
    new SectionItem{ Title = "快捷鍵", Content = new ShortcutKeys()},
    new SectionItem{ Title = "隱私設置", Content = new PrivacySettings()},
    new SectionItem{ Title = "關于我們", Content = new About()},
};
DataContext = this;

3. 模板定義

<DataTemplate x:Key="SectionTemplate">
    <StackPanel>
        <TextBlock Text="{Binding Title}" FontSize="20" Margin="0,10"/>
        <Border Background="#F0F0F0" Padding="20" CornerRadius="10">
            <ContentPresenter Content="{Binding Content}" FontSize="14"/>
        </Border>
    </StackPanel>
</DataTemplate>

4. 使用控件

<local:NavScrollPanel
    ItemTemplate="{StaticResource SectionTemplate}"
    ItemsSource="{Binding Sections}" />

5. 新增NavScrollPanelExample.xaml

<wd:Window
    x:Class="WpfNavPanel.MainWindow"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:local="clr-namespace:WpfNavPanel"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:wd="https://github.com/WPFDevelopersOrg/WPFDevelopers"
    Title="NavScrollPanel - 錨點導航"
    Width="800"
    Height="450"
    mc:Ignorable="d">
    <wd:Window.Resources>
        <DataTemplate x:Key="SectionTemplate">
            <StackPanel>
                <TextBlock
                    Margin="0,10"
                    FontSize="20"
                    Text="{Binding Title}" />
                <Border
                    Padding="20"
                    Background="#F0F0F0"
                    CornerRadius="10">
                    <ContentPresenter Content="{Binding Content}" TextElement.FontSize="14" />
                </Border>
            </StackPanel>
        </DataTemplate>
    </wd:Window.Resources>
    <Grid Margin="4">
        <local:NavScrollPanel ItemTemplate="{StaticResource SectionTemplate}" ItemsSource="{Binding Sections}" />
    </Grid>
</wd:Window>

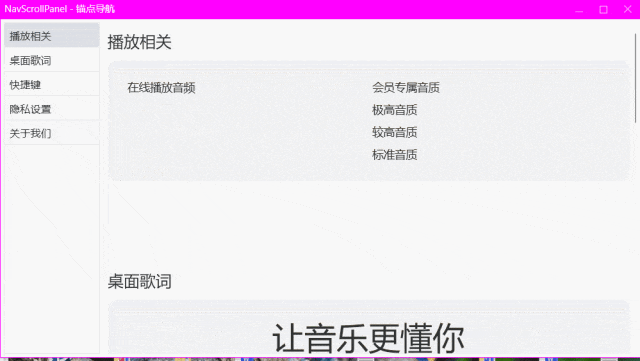

效果如下
