SpringBoot返回所有接口詳細信息的方法詳解
springboot返回所有接口詳細信息
簡單來說
就是我們通過訪問一個接口能看到我們所有的API接口的數量。
以及路徑和請求方法。

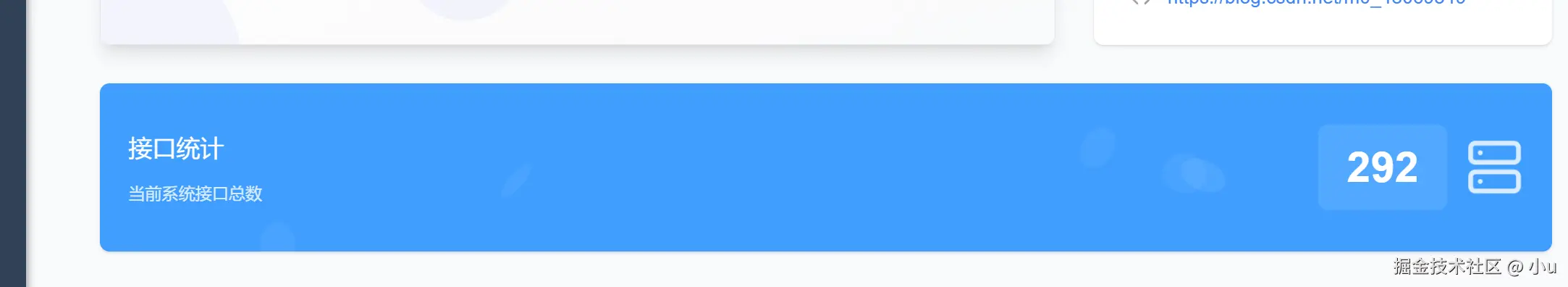

這個是我今天再做一個項目的首頁的時候。
前端的設計是有一個這樣的需求
因此這個數據需要我們從后臺來進行一個動態的獲取。
這里我們所需要用到的就是
spring-boot-starter-actuator
首先導入依賴
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency>
import io.swagger.v3.oas.annotations.Operation; import io.swagger.v3.oas.annotations.tags.Tag; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.web.bind.annotation.*; import org.springframework.web.method.HandlerMethod; import org.springframework.web.servlet.mvc.method.RequestMappingInfo; import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping; import org.springframework.context.ApplicationContext; import java.util.*; @RestController @RequestMapping("/uapi/api-list") @Tag(name = "API列表", description = "API列表") public class ApiListController { private final RequestMappingHandlerMapping handlerMapping; @Autowired public ApiListController(ApplicationContext context) { this.handlerMapping = context.getBean("requestMappingHandlerMapping", RequestMappingHandlerMapping.class); } @GetMapping @Operation(summary = "獲取所有API列表") public Map<String, Object> listAllApi() { Map<RequestMappingInfo, HandlerMethod> handlerMethods = handlerMapping.getHandlerMethods(); List<Map<String, String>> apiList = new ArrayList<>(); for (Map.Entry<RequestMappingInfo, HandlerMethod> entry : handlerMethods.entrySet()) { RequestMappingInfo info = entry.getKey(); Set<String> paths = new HashSet<>(); // ? 只使用 Spring Boot 3 推薦方式 if (info.getPathPatternsCondition() != null) { info.getPathPatternsCondition().getPatterns() .forEach(p -> paths.add(p.getPatternString())); } Set<RequestMethod> methods = info.getMethodsCondition().getMethods(); for (String path : paths) { if (methods.isEmpty()) { apiList.add(Map.of("method", "ANY", "path", path)); } else { for (RequestMethod method : methods) { apiList.add(Map.of("method", method.name(), "path", path)); } } } } Map<String, Object> result = new HashMap<>(); result.put("count", apiList.size()); result.put("apis", apiList); return result; } }
上面貼出的是springboot3的寫法。
這個代碼的核心原理就是
通過反射獲取 Spring Boot 項目中所有控制器方法的路徑和請求方式,然后把這些信息組織成一個列表,返回給用戶。通過這種方式,開發者可以查看當前 Spring Boot 項目中的所有公開 API 接口及其支持的請求方法。
這一過程的核心依賴是 Spring Boot 的 RequestMappingHandlerMapping
類,該類負責管理所有請求路徑的映射,能夠獲取每個路徑的具體信息。
Map<RequestMappingInfo, HandlerMethod> handlerMethods = handlerMapping.getHandlerMethods();
handlerMapping.getHandlerMethods()
通過 Spring 的RequestMappingHandlerMapping
類獲取所有已經注冊的請求映射信息。- 這里返回的是一個
Map
,key
是RequestMappingInfo
(包含了路徑和請求方法的相關信息),value
是HandlerMethod
(指向處理該請求的控制器方法)。
后面的就是在對返回的數據進行一個處理。

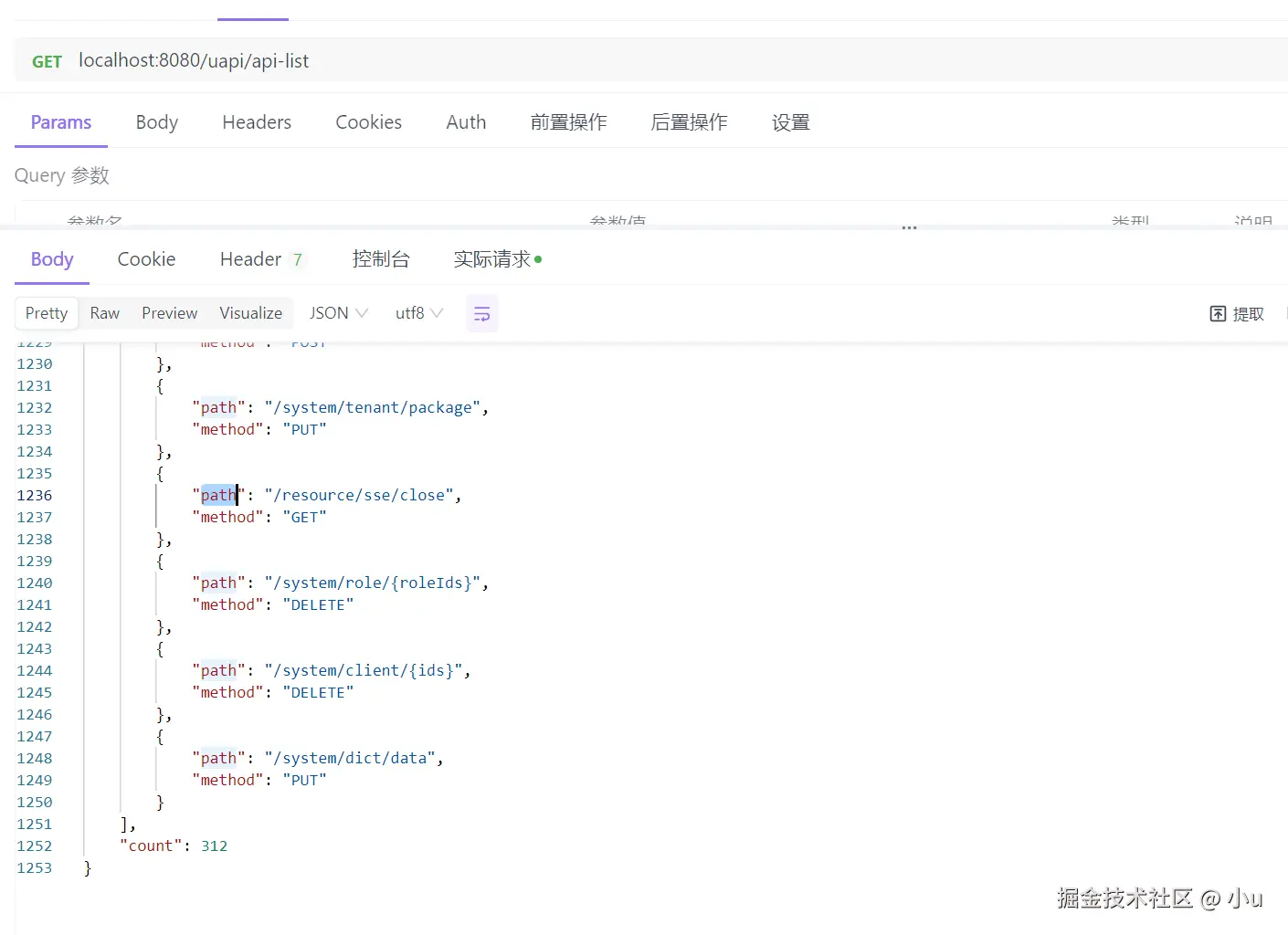

之后就會返回一個這樣的json
這樣就完成了我們的需求。
需要注意的是這段代碼
if (info.getPathPatternsCondition() != null) { info.getPathPatternsCondition().getPatterns() .forEach(p -> paths.add(p.getPatternString())); }
Spring Boot 3.x 的新方式:使用 getPathPatternsCondition() 獲取路徑集合(Pattern 類型),然后轉成字符串加到 paths 里。
Spring Boot 2.x 是用 getPatternsCondition(),在 3.x 中已經廢棄。
后面我貼了一個兼容版本,既可以兼容springboot3也可以兼容springboot2
@GetMapping("/api-list") public Map<String, Object> listAllApi() { Map<RequestMappingInfo, HandlerMethod> handlerMethods = handlerMapping.getHandlerMethods(); List<Map<String, String>> apiList = new ArrayList<>(); for (Map.Entry<RequestMappingInfo, HandlerMethod> entry : handlerMethods.entrySet()) { RequestMappingInfo info = entry.getKey(); Set<String> paths = new HashSet<>(); // Spring Boot 2.x if (info.getPatternsCondition() != null) { paths.addAll(info.getPatternsCondition().getPatterns()); } // Spring Boot 3.x if (info.getPathPatternsCondition() != null) { info.getPathPatternsCondition().getPatterns() .forEach(p -> paths.add(p.getPatternString())); } Set<RequestMethod> methods = info.getMethodsCondition().getMethods(); for (String path : paths) { if (methods.isEmpty()) { apiList.add(Map.of("method", "ANY", "path", path)); } else { for (RequestMethod method : methods) { apiList.add(Map.of("method", method.name(), "path", path)); } } } } Map<String, Object> result = new HashMap<>(); result.put("count", apiList.size()); result.put("apis", apiList); return result; }
以上就是SpringBoot返回所有接口詳細信息的方法詳解的詳細內容,更多關于SpringBoot返回接口信息的資料請關注腳本之家其它相關文章!
