通過C++獲取CPU占用率的代碼示例(windows、linux、macOS)
獲取CPU占用率
windows平臺
在Windows系統下使用C++獲取CPU占用率,常見方法可分為系統整體占用率和特定進程占用率兩類。以下是具體實現方法及核心代碼示例:

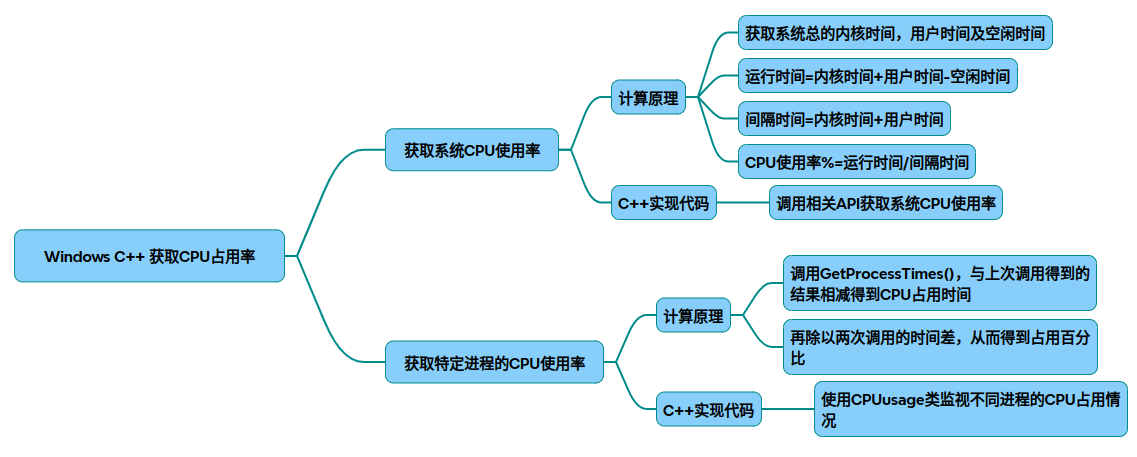

一、獲取系統整體CPU占用率
方法1:基于GetSystemTimes函數
原理:通過計算兩次采樣的系統空閑時間、內核時間和用戶時間差值,結合公式得出整體CPU使用率。
#include <windows.h> #include <iostream> double GetCpuUsage() { FILETIME idleTime, kernelTime, userTime; static FILETIME preIdleTime, preKernelTime, preUserTime; GetSystemTimes(&idleTime, &kernelTime, &userTime); // 轉換為64位整型 ULONGLONG idle = (*(ULONGLONG*)&idleTime) - (*(ULONGLONG*)&preIdleTime); ULONGLONG kernel = (*(ULONGLONG*)&kernelTime) - (*(ULONGLONG*)&preKernelTime); ULONGLONG user = (*(ULONGLONG*)&userTime) - (*(ULONGLONG*)&preUserTime); preIdleTime = idleTime; preKernelTime = kernelTime; preUserTime = userTime; if (kernel + user == 0) return 0.0; return ((kernel + user - idle) * 100.0) / (kernel + user); } // 調用示例 int main() { while (true) { Sleep(1000); // 間隔1秒采樣 std::cout << "CPU Usage: " << GetCpuUsage() << "%" << std::endl; } return 0; }
- 關鍵點:
需間隔一定時間(如1秒)采樣兩次數據。
公式:(內核時間 + 用戶時間 - 空閑時間) / (內核時間 + 用戶時間)。
方法2:使用性能計數器(PDH庫)
適用場景:需要高精度或?qū)崟r監控多個計數器。
#include <windows.h> #include <pdh.h> #pragma comment(lib, "pdh.lib") double GetCpuUsageByPdh() { static PDH_HQUERY query; static PDH_HCOUNTER counter; static bool initialized = false; if (!initialized) { PdhOpenQuery(nullptr, 0, &query); PdhAddCounter(query, L"\\Processor(_Total)\\% Processor Time", 0, &counter); initialized = true; } PDH_FMT_COUNTERVALUE value; PdhCollectQueryData(query); PdhGetFormattedCounterValue(counter, PDH_FMT_DOUBLE, nullptr, &value); return value.doubleValue; }
- 優點:與任務管理器數據一致,支持多核統計。
二、獲取特定進程CPU占用率
原理:通過GetProcessTimes獲取進程的內核和用戶時間,計算兩次采樣的時間差占比。
#include <windows.h> #include <iostream> class ProcessCpuMonitor { public: ProcessCpuMonitor(DWORD pid) : pid_(pid) { hProcess_ = OpenProcess(PROCESS_QUERY_LIMITED_INFORMATION, FALSE, pid_); } ~ProcessCpuMonitor() { if (hProcess_) CloseHandle(hProcess_); } float GetUsage() { FILETIME createTime, exitTime, kernelTime, userTime; if (!GetProcessTimes(hProcess_, &createTime, &exitTime, &kernelTime, &userTime)) return -1; ULONGLONG currentKernel = *(ULONGLONG*)&kernelTime; ULONGLONG currentUser = *(ULONGLONG*)&userTime; ULONGLONG delta = (currentKernel + currentUser) - (lastKernel_ + lastUser_); // 計算時間差(單位:100納秒) ULONGLONG timePassed = GetTickCount64() - lastTick_; lastTick_ = GetTickCount64(); lastKernel_ = currentKernel; lastUser_ = currentUser; if (timePassed == 0) return 0.0f; return (delta / 10000.0f) / timePassed * 100.0f; // 轉換為百分比 } private: DWORD pid_; HANDLE hProcess_ = nullptr; ULONGLONG lastKernel_ = 0, lastUser_ = 0; ULONGLONG lastTick_ = 0; }; // 調用示例 int main() { DWORD pid = 1234; // 目標進程ID ProcessCpuMonitor monitor(pid); while (true) { Sleep(1000); std::cout << "Process CPU Usage: " << monitor.GetUsage() << "%" << std::endl; } return 0; }
注意事項:
需以PROCESS_QUERY_LIMITED_INFORMATION權限打開進程。
公式:(進程時間差 / 系統時間差) * 100%。
三、常見問題
- 與任務管理器數據不一致:因采樣間隔和計算方式差異,結果可能有輕微偏差。
- 多核CPU:上述方法返回的是整體利用率,如需單核數據,需遍歷每個邏輯處理器。
- 權限問題:獲取系統級數據需管理員權限,進程級數據則不需要。
linux平臺
在Linux系統下使用C++獲取CPU占用率,主要通過解析/proc/stat文件實現。以下是具體實現方法和原理說明:
一、核心原理
Linux內核通過/proc/stat文件提供CPU活動的統計信息。文件中記錄了從系統啟動到當前時刻,CPU在不同狀態下的累計時間(單位:時鐘周期),包括:
- user:用戶態執行時間
- nice:低優先級用戶態時間
- system:內核態執行時間
- idle:空閑時間
- iowait:I/O等待時間
- irq:硬件中斷時間
- softirq:軟件中斷時間
通過兩次采樣這些數值,計算時間差并分析CPU占用率。
二、實現步驟
讀取 /proc/stat 文件
#include <fstream> #include <vector> #include <string> struct CpuTime { unsigned long user, nice, system, idle, iowait, irq, softirq; }; CpuTime readCpuStats() { std::ifstream file("/proc/stat"); std::string cpu_label; CpuTime time; file >> cpu_label >> time.user >> time.nice >> time.system >> time.idle >> time.iowait >> time.irq >> time.softirq; return time; }
- 計算CPU使用率
通過兩次采樣時間差計算CPU利用率:
double calculateCpuUsage(const CpuTime& prev, const CpuTime& curr) { const unsigned long prev_total = prev.user + prev.nice + prev.system + prev.idle + prev.iowait + prev.irq + prev.softirq; const unsigned long curr_total = curr.user + curr.nice + curr.system + curr.idle + curr.iowait + curr.irq + curr.softirq; const unsigned long total_diff = curr_total - prev_total; const unsigned long idle_diff = curr.idle - prev.idle; return (total_diff - idle_diff) * 100.0 / total_diff; }
- 完整示例
#include <iostream> #include <unistd.h> int main() { CpuTime prev = readCpuStats(); sleep(1); // 采樣間隔1秒 CpuTime curr = readCpuStats(); double usage = calculateCpuUsage(prev, curr); std::cout << "CPU Usage: " << usage << "%" << std::endl; return 0; }
三、擴展說明
多核CPU處理
/proc/stat中每行對應一個CPU核心(如cpu0, cpu1),需分別解析。
進程級CPU占用率
通過讀取/proc/[pid]/stat獲取進程的utime(用戶態時間)和stime(內核態時間),結合系統總時間計算。
注意事項
采樣間隔建議≥1秒,避免瞬時波動。
需處理/proc文件讀取失敗的情況。
高精度場景可使用clock_gettime替代sleep。
四、優化與替代方案
使用 sysinfo 系統調用
獲取粗略的系統負載信息,但精度較低。
調用 getrusage 函數
適用于統計進程自身的CPU使用情況。
第三方庫
如libstatgrab或procps-ng提供封裝接口。
macOS平臺
在 macOS 系統下通過 C++ 獲取 CPU 占用率,需要調用 Mach 內核 API 實現。以下是基于 、、 等資料的實現方案:
一、核心實現原理
Mach API 調用
macOS 基于 Darwin 內核,通過 <mach/mach_host.h> 提供的 host_statistics 函數獲取 CPU 時間統計信息。
CPU 占用率計算
需兩次采樣間隔內的 CPU 使用時間差,公式:
CPU 占用率 = (用戶態時間 + 內核態時間) / (總時間差) * 100%
二、代碼實現示例
#include <mach/mach_host.h> #include <mach/processor_info.h> #include <unistd.h> double get_cpu_usage() { host_cpu_load_info_data_t cpuinfo; mach_msg_type_number_t count = HOST_CPU_LOAD_INFO_COUNT; kern_return_t kr = host_statistics(mach_host_self(), HOST_CPU_LOAD_INFO, (host_info_t)&cpuinfo, &count); if (kr != KERN_SUCCESS) return -1.0; // 第一次采樣 uint64_t total_user_prev = cpuinfo.cpu_ticks[CPU_STATE_USER]; uint64_t total_sys_prev = cpuinfo.cpu_ticks[CPU_STATE_SYSTEM]; uint64_t total_idle_prev = cpuinfo.cpu_ticks[CPU_STATE_IDLE]; uint64_t total_used_prev = total_user_prev + total_sys_prev; // 等待 1 秒后再次采樣 sleep(1); kr = host_statistics(mach_host_self(), HOST_CPU_LOAD_INFO, (host_info_t)&cpuinfo, &count); if (kr != KERN_SUCCESS) return -1.0; uint64_t total_user = cpuinfo.cpu_ticks[CPU_STATE_USER]; uint64_t total_sys = cpuinfo.cpu_ticks[CPU_STATE_SYSTEM]; uint64_t total_idle = cpuinfo.cpu_ticks[CPU_STATE_IDLE]; uint64_t total_used = total_user + total_sys; // 計算差值 uint64_t used_diff = total_used - total_used_prev; uint64_t idle_diff = total_idle - total_idle_prev; uint64_t total_diff = used_diff + idle_diff; return (total_diff == 0) ? 0 : (used_diff * 100.0) / total_diff; }
三、關鍵點說明
多核 CPU 處理
上述代碼返回的是 所有 CPU 核心的平均占用率。若需獲取單核數據,需通過 host_processor_info 函數遍歷每個核心 。
時間間隔選擇
兩次采樣間隔建議 1 秒(sleep(1)),間隔過短會導致誤差增大。
錯誤處理
檢查 host_statistics 返回值是否為 KERN_SUCCESS,避免因權限問題或 API 調用失敗導致崩潰。
四、擴展功能
獲取單進程 CPU 占用
結合 proc_pidinfo 函數和 PROC_PIDTASKINFO 參數,可獲取指定進程的 CPU 時間 。
實時監控
通過多線程循環調用上述函數,實現動態曲線繪制(參考 中的 ImGui 方案)。
五、編譯注意事項
頭文件依賴:需包含 <mach/mach.h> 和 <mach/mach_host.h>
鏈接框架:添加 -framework IOKit 編譯選項
示例:clang++ -framework IOKit cpu_usage.cpp -o cpu_usage
以上就是通過C++獲取CPU占用率的代碼示例(windows、linux、macOS)的詳細內容,更多關于C++獲取CPU占用率的資料請關注腳本之家其它相關文章!
