Idea調用WebService的關鍵步驟和注意事項
前言
? WebService是一種基于網絡的技術,它允許不同的應用程序在互聯網上相互通信。要進行WebService對接,以下是一些關鍵步驟和注意事項:
一、理解WebService的基本概念
- 定義:WebService是一種基于標準化協議和格式的應用程序接口(API),它使用XML和HTTP來進行通信。
- 特點:可以跨平臺、跨語言進行數據傳輸和應用程序集成。
二、獲取WSDL文件
- WSDL定義:WSDL是Web服務描述語言(Web Services Description Language)的縮寫,是一種基于XML的語言,用于描述Web服務的接口、方法和數據類型。
- 獲取方式:通常,可以通過訪問WebService的WSDL地址來獲取WSDL文件。WSDL地址通常以“.wsdl”結尾,例如:http://localhost:8082/web/services/weather?wsdl。
- Idea的操作過程,

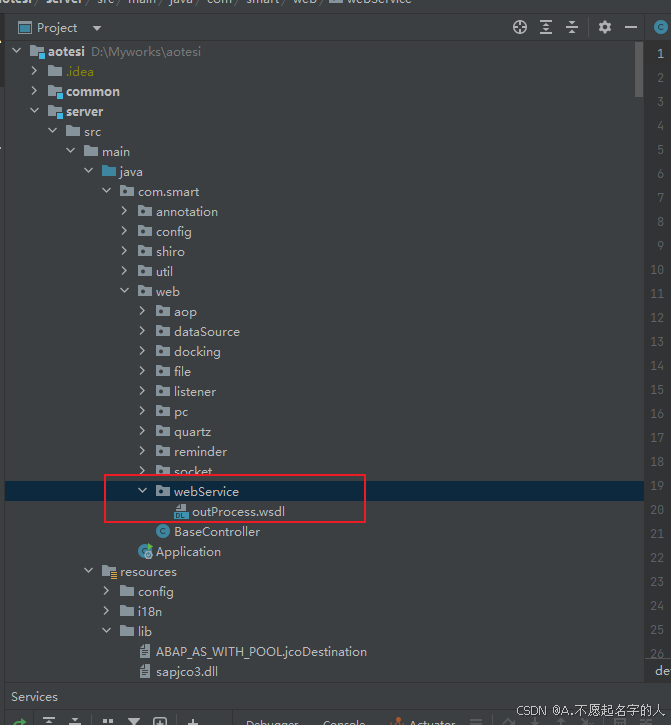

首先建立一個webService文件夾在項目中

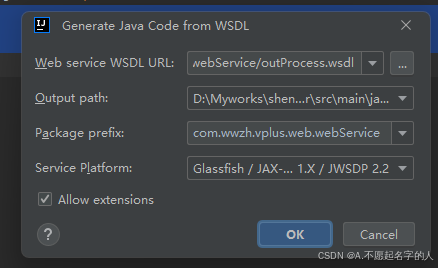

選擇此文件夾,點擊Tools中的XML webService,選擇Generate
輸入地址點擊確定就行

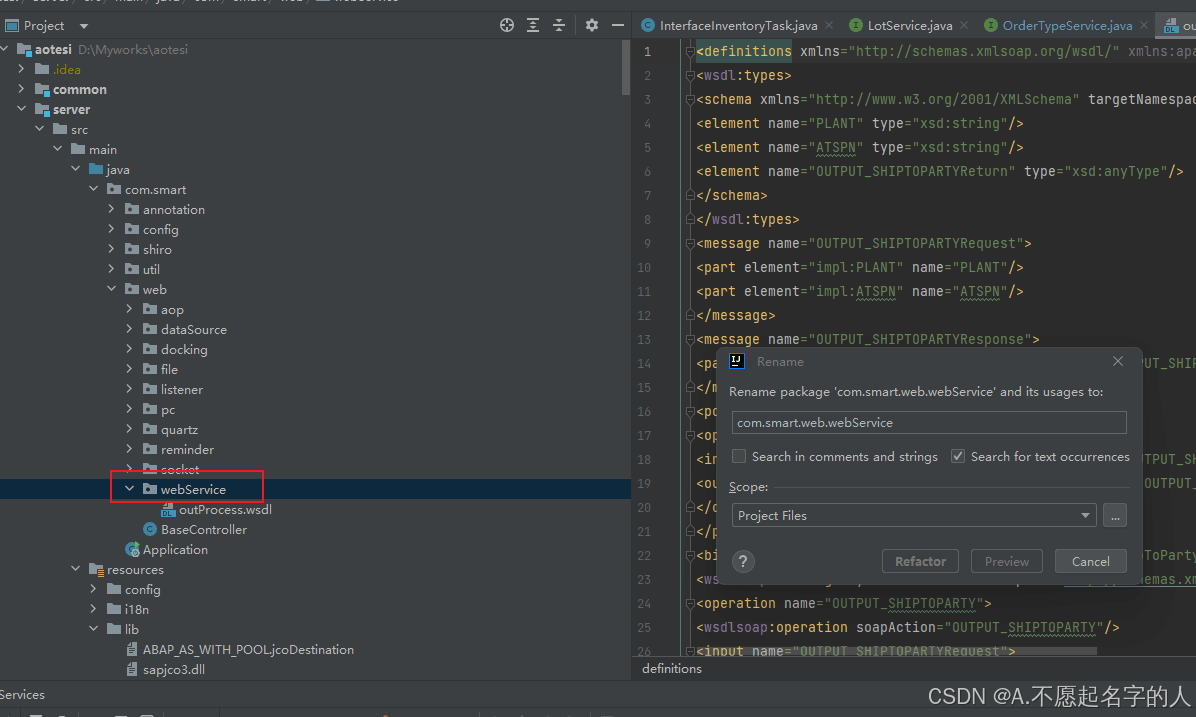

會生成多個類和方法名就直接可以調用
三、閱讀和理解WSDL文件
- 服務定義:WSDL文件包含一個或多個服務定義,每個服務定義描述了一個或多個相關的操作,以及它們接受和返回的消息的格式。
- 命名空間:WSDL中的命名空間用于唯一標識WSDL中包含的類型、元素和消息。
- 操作和方法:WSDL文件還描述了Web服務的地址、協議和傳輸機制等信息,以及具體的操作和方法。
四、選擇對接測試工具或方式
- SOAP UI:一個流行的WebService測試工具,可以用于查看WebService的接口信息、發送請求和接收響應。
- Postman:另一個常用的API測試工具,同樣可以用于WebService的對接測試。
- 編程方式:在代碼中,可以通過發送HTTP請求來調用WebService,請求參數需要按照WSDL文件中定義的格式封裝成XML格式。
五、發送請求和接收響應
- 請求格式:根據WSDL文件中的定義,構造符合要求的SOAP請求報文。請求報文通常包含Envelope(信封)、Header(頭部)和Body(正文)等部分。
- 發送請求:使用選擇的對接工具或方式發送請求到WebService的服務端點。
- 接收響應:服務端點接收到請求后,會進行解析并調用相應的Web服務方法,然后將結果封裝成HTTP響應返回。響應報文同樣遵循SOAP協議,并包含Envelope、Header和Body等部分。
六、直接通過xml和http請求訪問
? 1. 引用包
<!-- 使用apache的httpclient發送http,需要引入httpclient依賴; 使用OMElement需要引入axis2-transport-http依賴;改以來本身帶有httpclient依賴,所以 我們不在需要單獨引入httpclient依賴了 --> <dependency> <groupId>org.apache.axis2</groupId> <artifactId>axis2-transport-http</artifactId> <version>1.7.8</version> </dependency>
? 2.
package com.smart.util; import org.apache.axiom.om.OMElement; import org.apache.axiom.om.OMXMLBuilderFactory; import org.apache.http.client.ClientProtocolException; import org.apache.http.client.methods.CloseableHttpResponse; import org.apache.http.client.methods.HttpPost; import org.apache.http.entity.StringEntity; import org.apache.http.impl.client.CloseableHttpClient; import org.apache.http.impl.client.HttpClientBuilder; import org.apache.http.util.EntityUtils; import org.junit.runner.RunWith; import org.springframework.boot.test.context.SpringBootTest; import org.springframework.http.HttpHeaders; import org.springframework.http.converter.HttpMessageConverter; import org.springframework.http.converter.StringHttpMessageConverter; import org.springframework.test.context.junit4.SpringRunner; import org.springframework.web.client.RestTemplate; import org.w3c.dom.Document; import org.w3c.dom.Element; import org.w3c.dom.Node; import org.w3c.dom.NodeList; import org.xml.sax.InputSource; import org.xml.sax.SAXException; import javax.xml.parsers.DocumentBuilder; import javax.xml.parsers.DocumentBuilderFactory; import javax.xml.parsers.ParserConfigurationException; import javax.xml.stream.XMLStreamException; import javax.xml.xpath.XPath; import javax.xml.xpath.XPathExpressionException; import javax.xml.xpath.XPathFactory; import java.io.ByteArrayInputStream; import java.io.IOException; import java.io.InputStream; import java.io.StringReader; import java.nio.charset.StandardCharsets; import java.util.List; @RunWith(SpringRunner.class) @SpringBootTest public class AbcAxis2DemoApplicationUtils { public static String doPost(String partNo) throws IOException { // webservice的wsdl地址 final String wsdlURL = "" // 設置編碼。(因為是直接傳的xml,所以我們設置為text/xml;charset=utf8) final String contentType = "text/xml;charset=utf8"; /// 拼接要傳遞的xml數據(注意:此xml數據的模板我們根據wsdlURL從SoapUI中獲得,只需要修改對應的變量值即可) StringBuffer xMLcontent = new StringBuffer(""); xMLcontent.append("<soapenv:Envelope xmlns:soapenv=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:urn=\"urn:DefaultNamespace\">\n"); xMLcontent.append(" <soapenv:Header/>\n"); xMLcontent.append(" <soapenv:Body>\n"); xMLcontent.append(" <urn:字段1>Shanghai</urn:字段1>\n"); xMLcontent.append(" <urn:字段2>" + "TAN2921" + "</urn:字段2>\n"); xMLcontent.append(" </soapenv:Body>\n"); xMLcontent.append("</soapenv:Envelope>"); // 調用工具類方法發送http請求 String responseXML = HttpSendUtil.doHttpPostByHttpClient(wsdlURL, contentType, xMLcontent.toString()); // 當然我們也可以調用這個工具類方法發送http請求 // String responseXML = HttpSendUtil.doHttpPostByRestTemplate(wsdlURL, contentType, xMLcontent.toString()); // 利用axis2的OMElement,將xml數據轉換為OMElement OMElement omElement = OMXMLBuilderFactory .createOMBuilder(new ByteArrayInputStream(responseXML.getBytes()), "utf-8").getDocumentElement(); try { DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance(); factory.setNamespaceAware(true); // 設置為true以處理命名空間 DocumentBuilder builder = factory.newDocumentBuilder(); InputSource inputSource = new InputSource(new StringReader(responseXML)); Document document = builder.parse(inputSource); // 獲取所有名為"OUTPUT_SHIPTOPARTYReturn"的元素,并考慮命名空間 NodeList nodeList = document.getElementsByTagNameNS("urn:DefaultNamespace", "OUTPUT_SHIPTOPARTYReturn"); for (int i = 0; i < nodeList.getLength(); i++) { Element element = (Element) nodeList.item(i); // 檢查元素是否有文本內容(即非空且非自閉合標簽) if (element.hasChildNodes() && element.getFirstChild().getNodeType() == Node.TEXT_NODE) { String textContent = element.getTextContent(); System.out.println("Extracted value: " + textContent); return textContent; } } } catch (ParserConfigurationException | SAXException | IOException e) { e.printStackTrace(); } return null; } public static String getNodeValue(Document document, String nodePaht) { XPathFactory xpfactory = XPathFactory.newInstance(); XPath path = xpfactory.newXPath(); String servInitrBrch = ""; try { servInitrBrch = path.evaluate(nodePaht, document); } catch (XPathExpressionException e) { e.printStackTrace(); } return servInitrBrch; } public static Document StringTOXml(String str) { StringBuilder sXML = new StringBuilder(); sXML.append(str); DocumentBuilderFactory dbf = DocumentBuilderFactory.newInstance(); Document doc = null; try { InputStream is = new ByteArrayInputStream(sXML.toString().getBytes("utf-8")); doc = dbf.newDocumentBuilder().parse(is); is.close(); } catch (Exception e) { e.printStackTrace(); } return doc; } } /** * HTTP工具類 * * @author JustryDeng * @DATE 2018年9月22日 下午10:29:08 */ class HttpSendUtil { /** * 使用apache的HttpClient發送http * * @param wsdlURL * 請求URL * @param contentType * 如:application/json;charset=utf8 * @param content * 數據內容 * @DATE 2018年9月22日 下午10:29:17 */ static String doHttpPostByHttpClient(final String wsdlURL, final String contentType, final String content) throws ClientProtocolException, IOException { // 獲得Http客戶端(可以理解為:你得先有一個瀏覽器;注意:實際上HttpClient與瀏覽器是不一樣的) CloseableHttpClient httpClient = HttpClientBuilder.create().build(); // 創建Post請求 HttpPost httpPost = new HttpPost(wsdlURL); StringEntity entity = new StringEntity(content.toString(), "UTF-8"); // 將數據放入entity中 httpPost.setEntity(entity); httpPost.setHeader("Content-Type", contentType); // 響應模型 CloseableHttpResponse response = null; String result = null; try { // 由客戶端執行(發送)Post請求 response = httpClient.execute(httpPost); // 從響應模型中獲取響應實體 // 注意:和doHttpPostByRestTemplate方法用的不是同一個HttpEntity org.apache.http.HttpEntity responseEntity = response.getEntity(); System.out.println("響應ContentType為:" + responseEntity.getContentType()); System.out.println("響應狀態為:" + response.getStatusLine()); if (responseEntity != null) { result = EntityUtils.toString(responseEntity); System.out.println("響應內容為:" + result); } } finally { // 釋放資源 if (httpClient != null) { httpClient.close(); } if (response != null) { response.close(); } } return result; } /** * 使用springframework的RestTemplate發送http * * @param wsdlURL * 請求URL * @param contentType * 如:application/json;charset=utf8 * @param content * 數據內容 * @DATE 2018年9月22日 下午10:30:48 */ static String doHttpPostByRestTemplate(final String wsdlURL, final String contentType, final String content) { // http使用無參構造;https需要使用有參構造 RestTemplate restTemplate = new RestTemplate(); // 解決中文亂碼 List<HttpMessageConverter<?>> converterList = restTemplate.getMessageConverters(); converterList.remove(1); HttpMessageConverter<?> converter = new StringHttpMessageConverter(StandardCharsets.UTF_8); converterList.add(1, converter); restTemplate.setMessageConverters(converterList); // 設置Content-Type HttpHeaders headers = new HttpHeaders(); headers.remove("Content-Type"); headers.add("Content-Type", contentType); // 數據信息封裝 // 注意:和doHttpPostByHttpClient方法用的不是同一個HttpEntity org.springframework.http.HttpEntity<String> formEntity = new org.springframework.http.HttpEntity<String>( content, headers); String result = restTemplate.postForObject(wsdlURL, formEntity, String.class); return result; } }
七、處理響應結果
- 解析響應:將接收到的響應報文進行解析,提取出需要的數據。這通常涉及到對XML格式的響應報文進行解析和處理。
- 錯誤處理:在對接過程中,可能會遇到各種錯誤和異常情況。因此,需要添加適當?shù)腻e誤處理邏輯來應對這些情況。
總結
到此這篇關于Idea調用WebService的關鍵步驟和注意事項的文章就介紹到這了,更多相關Idea調用WebService內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
