淺談MySQL中使用IN會走索引嗎
更新時間：2025年02月21日 10:49:32 作者：cxSmiles
本文主要介紹了淺談MySQL中使用IN會走索引嗎,通過三個案例分析了MySQL 5.7.34版本中IN操作符的執行情況,感興趣的可以了解一下
結論: MySQL優化器在發現執行全表掃描效率 > 索引的效率時,會選擇全表掃描。
- 至于IN的數據量占全表的20%或30%以內會走索引，沒有明確的答案。
- 根據優化器分析來選擇查詢成本更低的執行方式。
MySQL IN流程驗證
mysql版本為5.7.34
CREATE TABLE `_default` ( `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '主鍵id', `default_name` varchar(100) NOT NULL COMMENT '默認名稱', `default_code` varchar(50) NOT NULL COMMENT '默認編碼', `default_type` tinyint(3) unsigned NOT NULL COMMENT '默認類型', `start_time` datetime NOT NULL COMMENT '開始時間', `end_time` datetime NOT NULL COMMENT '結束時間', `status` tinyint(3) unsigned NOT NULL DEFAULT '1' COMMENT '狀態(1:未發布, 2:已發布, 3:已生效, 4:已失效, 5:已作廢)', `deleted` tinyint(3) unsigned NOT NULL DEFAULT '0' COMMENT '是否刪除 0:否 1:是', `create_by` varchar(50) NOT NULL COMMENT '創建人', `create_time` datetime NOT NULL COMMENT '創建時間', `update_by` varchar(50) DEFAULT NULL COMMENT '更新人', `update_time` datetime DEFAULT NULL COMMENT '更新時間', PRIMARY KEY (`id`), UNIQUE KEY `uk_default_code` (`default_code`) USING BTREE, KEY `idx_status` (`status`) USING BTREE ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='_default';
-- 測試數據 INSERT INTO `_default` VALUES (1, 'test2024-07-29 13:56:03', 'DEFAULT23121410204', 1, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:25:39', NULL, NULL); INSERT INTO `_default` VALUES (2, 'demoData', 'DEFAULT23121410205', 1, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:25:40', NULL, NULL); INSERT INTO `_default` VALUES (3, 'demoData', 'DEFAULT23121410206', 1, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '2', '2023-12-14 16:25:41', NULL, NULL); INSERT INTO `_default` VALUES (4, 'demoData', 'DEFAULT23121410207', 1, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:25:42', NULL, NULL); INSERT INTO `_default` VALUES (5, 'demoData', 'DEFAULT23121410208', 1, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:25:43', NULL, NULL); INSERT INTO `_default` VALUES (6, 'demoData', 'DEFAULT23121410209', 0, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:27:09', NULL, NULL); INSERT INTO `_default` VALUES (7, 'demoData', 'DEFAULT23121410210', 0, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:27:10', NULL, NULL); INSERT INTO `_default` VALUES (8, 'demoData', 'DEFAULT23121410211', 0, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:27:11', NULL, NULL); INSERT INTO `_default` VALUES (9, 'demoData', 'DEFAULT23121410212', 0, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 1, 0, '1', '2023-12-14 16:27:12', NULL, NULL); INSERT INTO `_default` VALUES (10, 'demoData', 'DEFAULT23121410213', 0, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 1, 1, '1', '2023-12-14 16:27:13', NULL, NULL);
案例一：
explain select * from _default where id in (1);

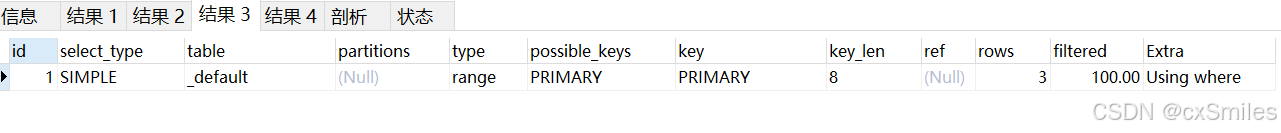

案例二：
explain select * from _default where id in (1,2,3);

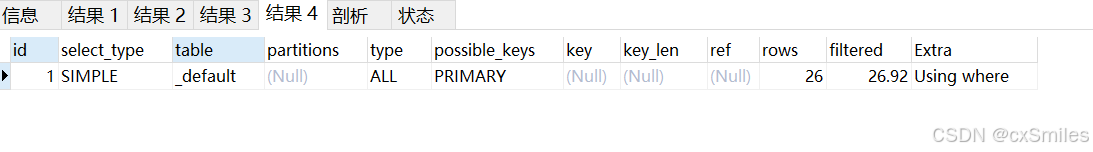

案例三：
explain select * from _default where id in (1,2,3,4,5,6,7);
從上面三個案例可以看出案例一、案例二走了索引，案例三沒有走索引。why?
MySQL TRACE解析
-- step1:查詢mysql optimizer_trace是否開啟,on為開啟 show variables like 'optimizer_trace'; -- step2:若未開啟,設置為開啟 set optimizer_trace = 'enabled=on'; -- step3:需要注意查詢sql和TRACE一起查詢, 如果單獨查詢完再查詢TRAC,查詢結果為空 select * from _default where id in (1,2,3,4,5,6,7); select TRACE from `information_schema`.`OPTIMIZER_TRACE`
案例一
{
"steps": [
{
"join_preparation": {
"select#": 1,
"steps": [
{
"expanded_query": "/* select#1 */ select `_default`.`id` AS `id`,`_default`.`default_name` AS `default_name`,`_default`.`default_code` AS `default_code`,`_default`.`default_type` AS `default_type`,`_default`.`start_time` AS `start_time`,`_default`.`end_time` AS `end_time`,`_default`.`status` AS `status`,`_default`.`deleted` AS `deleted`,`_default`.`create_by` AS `create_by`,`_default`.`create_time` AS `create_time`,`_default`.`update_by` AS `update_by`,`_default`.`update_time` AS `update_time` from `_default` where (`_default`.`id` = 1)"
}
]
}
},
{
"join_optimization": { -- sql優化階段
"select#": 1,
"steps": [
{
"condition_processing": {
"condition": "WHERE",
"original_condition": "(`_default`.`id` = 1)",
"steps": [
{
"transformation": "equality_propagation",
"resulting_condition": "multiple equal(1, `_default`.`id`)"
},
{
"transformation": "constant_propagation",
"resulting_condition": "multiple equal(1, `_default`.`id`)"
},
{
"transformation": "trivial_condition_removal",
"resulting_condition": "multiple equal(1, `_default`.`id`)"
}
]
}
},
{
"substitute_generated_columns": {}
},
{
"table_dependencies": [
{
"table": "`_default`",
"row_may_be_null": false,
"map_bit": 0,
"depends_on_map_bits": []
}
]
},
{
"ref_optimizer_key_uses": [
{
"table": "`_default`",
"field": "id",
"equals": "1",
"null_rejecting": false
}
]
},
{
"rows_estimation": [
{
"table": "`_default`",
"rows": 1,
"cost": 1,
"table_type": "const",
"empty": false
}
]
},
{
"condition_on_constant_tables": "1",
"condition_value": true
},
{
"attaching_conditions_to_tables": {
"original_condition": "1",
"attached_conditions_computation": [],
"attached_conditions_summary": []
}
},
{
"refine_plan": []
}
]
}
},
{
"join_execution": {
"select#": 1,
"steps": []
}
}
]
}
案例二
{
"steps": [
{
"join_preparation": {
"select#": 1,
"steps": [
{
"IN_uses_bisection": true
},
{
"expanded_query": "/* select#1 */ select `_default`.`id` AS `id`,`_default`.`default_name` AS `default_name`,`_default`.`default_code` AS `default_code`,`_default`.`default_type` AS `default_type`,`_default`.`start_time` AS `start_time`,`_default`.`end_time` AS `end_time`,`_default`.`status` AS `status`,`_default`.`deleted` AS `deleted`,`_default`.`create_by` AS `create_by`,`_default`.`create_time` AS `create_time`,`_default`.`update_by` AS `update_by`,`_default`.`update_time` AS `update_time` from `_default` where (`_default`.`id` in (1,2,3))"
}
]
}
},
{
"join_optimization": {
"select#": 1,
"steps": [
{
"condition_processing": {
"condition": "WHERE",
"original_condition": "(`_default`.`id` in (1,2,3))",
"steps": [
{
"transformation": "equality_propagation",
"resulting_condition": "(`_default`.`id` in (1,2,3))"
},
{
"transformation": "constant_propagation",
"resulting_condition": "(`_default`.`id` in (1,2,3))"
},
{
"transformation": "trivial_condition_removal",
"resulting_condition": "(`_default`.`id` in (1,2,3))"
}
]
}
},
{
"substitute_generated_columns": {}
},
{
"table_dependencies": [
{
"table": "`_default`",
"row_may_be_null": false,
"map_bit": 0,
"depends_on_map_bits": []
}
]
},
{
"ref_optimizer_key_uses": []
},
{
"rows_estimation": [
{
"table": "`_default`",
"range_analysis": {
"table_scan": {
"rows": 26,
"cost": 8.3
},
"potential_range_indexes": [
{
"index": "PRIMARY",
"usable": true,
"key_parts": [
"id"
]
},
{
"index": "uk_default_code",
"usable": false,
"cause": "not_applicable"
},
{
"index": "idx_status",
"usable": false,
"cause": "not_applicable"
},
{
"index": "idx_default_name",
"usable": false,
"cause": "not_applicable"
}
],
"setup_range_conditions": [],
"group_index_range": {
"chosen": false,
"cause": "not_group_by_or_distinct"
},
"analyzing_range_alternatives": {
"range_scan_alternatives": [
{
"index": "PRIMARY",
"ranges": [
"1 <= id <= 1",
"2 <= id <= 2",
"3 <= id <= 3"
],
"index_dives_for_eq_ranges": true,
"rowid_ordered": true,
"using_mrr": false,
"index_only": false,
"rows": 3,
"cost": 3.6153,
"chosen": true
}
],
"analyzing_roworder_intersect": {
"usable": false,
"cause": "too_few_roworder_scans"
}
},
"chosen_range_access_summary": {
"range_access_plan": {
"type": "range_scan",
"index": "PRIMARY",
"rows": 3,
"ranges": [
"1 <= id <= 1",
"2 <= id <= 2",
"3 <= id <= 3"
]
},
"rows_for_plan": 3,
"cost_for_plan": 3.6153,
"chosen": true
}
}
}
]
},
{
"considered_execution_plans": [
{
"plan_prefix": [],
"table": "`_default`",
"best_access_path": {
"considered_access_paths": [
{
"rows_to_scan": 3,
"access_type": "range",
"range_details": {
"used_index": "PRIMARY"
},
"resulting_rows": 3,
"cost": 4.2153,
"chosen": true
}
]
},
"condition_filtering_pct": 100,
"rows_for_plan": 3,
"cost_for_plan": 4.2153,
"chosen": true
}
]
},
{
"attaching_conditions_to_tables": {
"original_condition": "(`_default`.`id` in (1,2,3))",
"attached_conditions_computation": [],
"attached_conditions_summary": [
{
"table": "`_default`",
"attached": "(`_default`.`id` in (1,2,3))"
}
]
}
},
{
"refine_plan": [
{
"table": "`_default`"
}
]
}
]
}
},
{
"join_execution": {
"select#": 1,
"steps": []
}
}
]
}

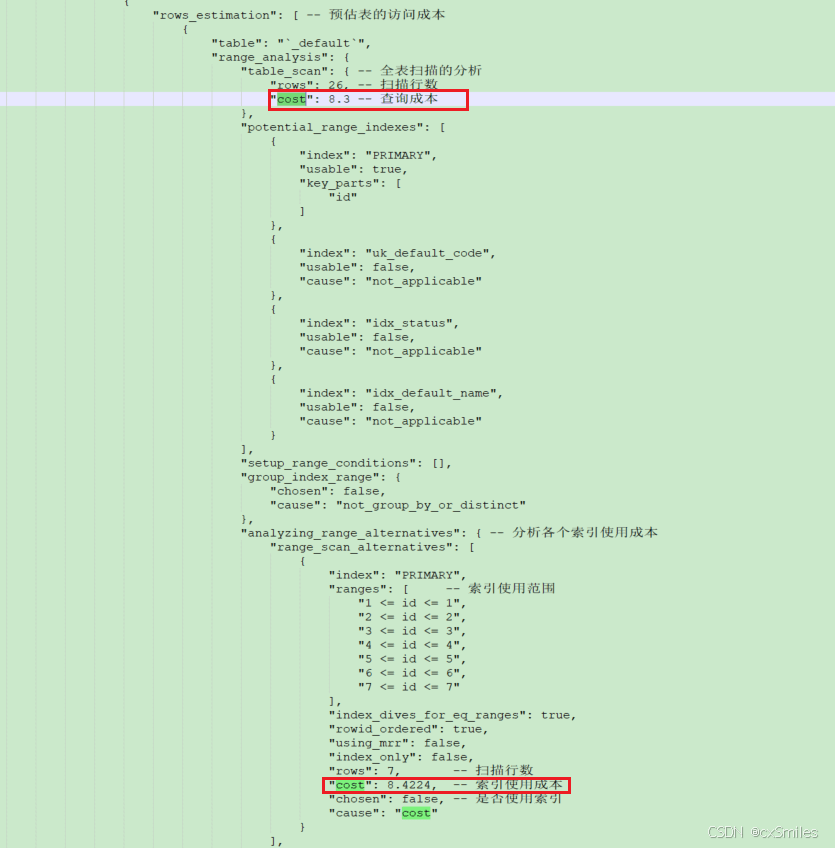

案例三
{
"steps": [
{
"join_preparation": {
"select#": 1,
"steps": [
{
"IN_uses_bisection": true
},
{
"expanded_query": "/* select#1 */ select `_default`.`id` AS `id`,`_default`.`default_name` AS `default_name`,`_default`.`default_code` AS `default_code`,`_default`.`default_type` AS `default_type`,`_default`.`start_time` AS `start_time`,`_default`.`end_time` AS `end_time`,`_default`.`status` AS `status`,`_default`.`deleted` AS `deleted`,`_default`.`create_by` AS `create_by`,`_default`.`create_time` AS `create_time`,`_default`.`update_by` AS `update_by`,`_default`.`update_time` AS `update_time` from `_default` where (`_default`.`id` in (1,2,3,4,5,6,7))"
}
]
}
},
{
"join_optimization": {
"select#": 1,
"steps": [
{
"condition_processing": {
"condition": "WHERE",
"original_condition": "(`_default`.`id` in (1,2,3,4,5,6,7))",
"steps": [
{
"transformation": "equality_propagation",
"resulting_condition": "(`_default`.`id` in (1,2,3,4,5,6,7))"
},
{
"transformation": "constant_propagation",
"resulting_condition": "(`_default`.`id` in (1,2,3,4,5,6,7))"
},
{
"transformation": "trivial_condition_removal",
"resulting_condition": "(`_default`.`id` in (1,2,3,4,5,6,7))"
}
]
}
},
{
"substitute_generated_columns": {}
},
{
"table_dependencies": [
{
"table": "`_default`",
"row_may_be_null": false,
"map_bit": 0,
"depends_on_map_bits": []
}
]
},
{
"ref_optimizer_key_uses": []
},
{
"rows_estimation": [ -- 預估表的訪問成本
{
"table": "`_default`",
"range_analysis": {
"table_scan": { -- 全表掃描的分析
"rows": 26, -- 掃描行數
"cost": 8.3 -- 查詢成本
},
"potential_range_indexes": [
{
"index": "PRIMARY",
"usable": true,
"key_parts": [
"id"
]
},
{
"index": "uk_default_code",
"usable": false,
"cause": "not_applicable"
},
{
"index": "idx_status",
"usable": false,
"cause": "not_applicable"
},
{
"index": "idx_default_name",
"usable": false,
"cause": "not_applicable"
}
],
"setup_range_conditions": [],
"group_index_range": {
"chosen": false,
"cause": "not_group_by_or_distinct"
},
"analyzing_range_alternatives": { -- 分析各個索引使用成本
"range_scan_alternatives": [
{
"index": "PRIMARY",
"ranges": [ -- 索引使用范圍
"1 <= id <= 1",
"2 <= id <= 2",
"3 <= id <= 3",
"4 <= id <= 4",
"5 <= id <= 5",
"6 <= id <= 6",
"7 <= id <= 7"
],
"index_dives_for_eq_ranges": true,
"rowid_ordered": true,
"using_mrr": false,
"index_only": false,
"rows": 7, -- 掃描行數
"cost": 8.4224, -- 索引使用成本
"chosen": false, -- 是否使用索引
"cause": "cost"
}
],
"analyzing_roworder_intersect": {
"usable": false,
"cause": "too_few_roworder_scans"
}
}
}
}
]
},
{
"considered_execution_plans": [
{
"plan_prefix": [],
"table": "`_default`",
"best_access_path": {
"considered_access_paths": [
{
"rows_to_scan": 26,
"access_type": "scan",
"resulting_rows": 26,
"cost": 6.2,
"chosen": true
}
]
},
"condition_filtering_pct": 100,
"rows_for_plan": 26,
"cost_for_plan": 6.2,
"chosen": true
}
]
},
{
"attaching_conditions_to_tables": {
"original_condition": "(`_default`.`id` in (1,2,3,4,5,6,7))",
"attached_conditions_computation": [],
"attached_conditions_summary": [
{
"table": "`_default`",
"attached": "(`_default`.`id` in (1,2,3,4,5,6,7))"
}
]
}
},
{
"refine_plan": [
{
"table": "`_default`"
}
]
}
]
}
},
{
"join_execution": {
"select#": 1,
"steps": []
}
}
]
}
join_optimization.rows_estimation.range_analysis.table_scan 和 join_optimization.rows_estimation.range_analysis.analyzing_range_alternatives
當索引使用成本 > 全表掃描的成本時就會選擇全表掃描，全表rows為26,索引rows為7,為什么不用索引？
- 如果是查所有數據，存在回表的情況，IN的越多回表成本越高
- 如果是查詢條件和返回字段相同并且存在索引的情況(覆蓋索引)，這種情況可能優化器是可能選擇索引
system > const> eq_ref > ref > range > index > all
system：只有一行記錄。const：索引一次就找到了,主鍵和唯一索引。eq_ref：唯一的索引，表與表之間關聯，關聯條件為主鍵或唯一索引。ref：非唯一的索引，根據某個字段查詢(有二級索引)，存在多行數據。range：范圍查詢。index：查詢索引樹(覆蓋索引的場景)。all：查詢所有數據(與index的區別在于index只遍歷索引樹，all會在磁盤中查找)。
小結
到此這篇關于淺談MySQL中使用IN會走索引嗎的文章就介紹到這了,更多相關MySQL IN索引內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
